MW Mean Well Plastic Case HDR-60W-12/15/24/48/5V Step Shape Class II Ultra Slim Step Shape DIN Rail AC-DC Single Output Power Supply (HDR-60-24)

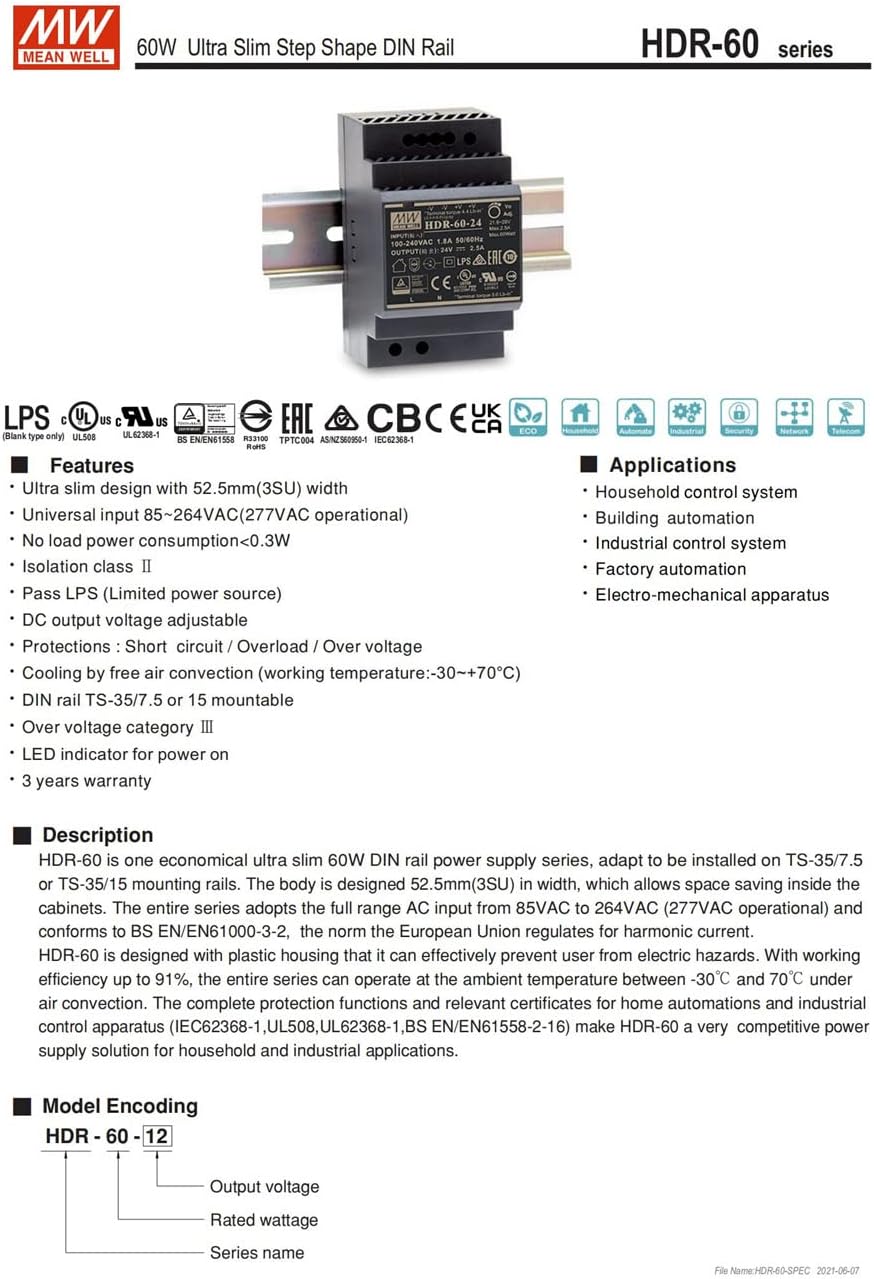

The HDR-60 series Suitable for Household control system, Building automation, Industrial control system, Factory automation, Electro-mechanical apparatus. ·Ultra slim design with 52.5mm(3SU)width ·Universal input 85~264 VAC(277 VAC operational) .No load power consumption<0.3W ·Isolation class ? ·Pass LPS(Limited power source) ·DC output voltage adjustable ·Protections: Short circuit/Overload/Over voltage ·Cooling by free air convection(working temperature:-30~+70°C) ·DIN rail TS-35/7.5 or 15 mountable ·Over voltage category ? ·LED indicator for power on ·3 years warranty Description HDR-60 is one economical ultra slim 60W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 52.5mm(3SU) in width. which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85 VAC to 264 VAC(277 VAC operational) and conforms to BS EN/EN61000-3-2,the norm the European Union regulates for harmonic current. HDR-60 is designed with plastic housing that it can effectively prevent user from electric hazards.With working efficiency up to 91%, the entire series can operate at the ambient temperature between -30?and 70? under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus(lEC62368-1,UL508,UL62368-1,BS EN/EN61558-2-16) make HDR-60 a very competitive power supply solution for household and industrial applications.

• HDR-60W|(12V/4.5A).(15V/4A).(24V/2.5A).(48V/1.25A) .(5V/6.5A)For Household/Industrial/Building automation control, Electro-mechanical apparatus
